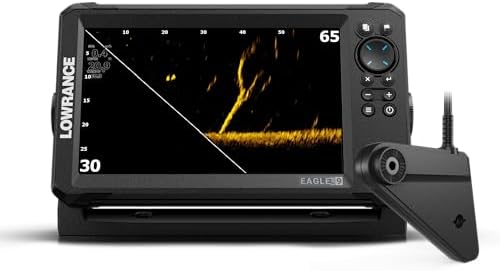

The Lowrance Eagle Eye 9 sonar fish finder delivers professional-grade sonar at an accessible price point. This integrated unit offers Live Sonar for real-time fish tracking, alongside powerful CHIRP Sonar and DownScan with FishReveal, providing unmatched underwater clarity. Anglers gain immediate target identification and precise structure imaging without the need for complex modules.
The bright 9-inch display presents all views. The Lowrance Eagle Eye 9 sonar fish finder fundamentally simplifies advanced fish finding, allowing anglers to see strikes increase by eliminating guesswork in diverse conditions.
Key Points of Lowrance Eagle Eye 9 Fishfinder
- 4 sonar views from a single transducer with no module needed (Live Forward, Live Down, CHIRP Sonar, DownScan Imaging wit…
- Autotuning live sonar with focused down and forward views
- Detailed C-MAP charts feat. Genesis Live
Key Specifications of Lowrance Eagle Eye 9 Fishfinder
| Specifications | Details |
| Screen Size & Type | 9-inch IPS (In-Plane Switching) panel |
| Resolution | 1024 × 600 pixels |
| Brightness & Visibility | 1000 NITS; viewable in direct sunlight with polarized glasses |
| Viewing Angles | 85° vertical/horizontal |
| Technologies | Live Forward, Live Down, CHIRP Sonar, DownScan Imaging with FishReveal |
| Transducer | Single-unit design (no external module required) |
| Max Depth | CHIRP: 152m (500 ft)DownScan: 91m (300 ft) |
| Autotuning | Automatic optimization for real-time conditions |
| Preloaded Charts | C-MAP Discover OnBoard (17,000+ U.S. inland lakes) |
| Custom Mapping | Genesis Live (creates 0.5-ft contour maps in real-time) |
| Expandability | microSD slot (32 GB max) for additional charts/software |
| Dimensions & Weight | 287.2 × 162.5 × 90 mm (11.3″ × 6.39″ × 3.54″); 1.98 lbs (0.9 kg) |
| Mounting | Gimbal bracket or dash mount; kayak/trolling motor compatible |
| Connector System | Tool-free twist-lock |
| Voltage & Consumption | 12V DC (10.8–17V); 650 mA max |
| Environmental Protection | IPX7 waterproof rating; operates in -15°C to 55°C (5°F to 131°F) |
| Warranty Coverage | 1 year base + 4-year optional extension (5 years total) |
Mapping & Features: How Lowrance Eagle Eye 9 Enhances Your Fishing
Precision navigation and real-time insights transform how anglers locate fish, maximize time on water, and ultimately catch more with every trip. Here are its detailed features:
Preloaded C-MAP Discover OnBoard Charts
The Lowrance Eagle Eye 9 includes detailed charts for 17,000+ U.S. inland lakes. Anglers navigate confidently without purchasing extra maps. High-resolution contours highlight drop-offs, channels, and hazards, critical for locating fish-holding structures on unfamiliar waters.
Genesis Live Real-Time Mapping
Create custom 0.5-foot contour maps on the fly. As you drive your kayak, the Lowrance Eagle Eye 9 records depth data, revealing hidden ledges, humps, and ditches. This transforms unmapped areas into precision fishing zones, ideal for seasonal pattern tracking.
FishReveal: Target Fish in Cover
DownScan Imaging overlays CHIRP sonar data to highlight fish hiding in vegetation, wood, or rocks. FishReveal tints targets orange, eliminating guesswork in dense cover. Anglers verify strikes before casting, boosting shallow-water efficiency.
Quad-View Sonar Flexibility
Toggle instantly between four modes:
Live Forward: Spot fish ahead (up to 60 ft).
Live Down: Track suspended schools vertically.
CHIRP Sonar: Traditional arches for open-water scanning.
DownScan: Photo-like imaging of bottom composition.
Autotuning & Waypoint Synergy
The system auto-adjusts sonar settings for depth and clutter. Save productive spots as waypoints, then navigate back using the map’s trail lines. This combo turns random finds into repeatable honey holes.
Unboxing of Lowrance Eagle Eye 9: What’s Inside the Package?
The Lowrance Eagle Eye 9 arrives with all the essentials for immediate setup. Key inclusions:
Core Components
9-inch Display Unit:
Pre-assembled with the transducer mounting arm.
Features a 1024 × 600 IPS screen (1000 NITS brightness).
Integrated Live Sonar Transducer:
Single-unit design (no external module).
Pre-attached 7.6m (25 ft) cable with tool-free twist-lock connector.
Mounting Hardware
Gimbal Bracket:
Adjustable tilt/swivel base for dash or console installation.
Stainless Steel Hardware Kit:
Screws, nuts, and washers for secure mounting.
Power & Connectivity
Power Cable (16 ft / 4.9m):
Direct-wire harness with fused 12V leads (no battery included).
Compatible with 10.8–17V systems.
Documentation & Extras
Quick-Start Guide:
Simplified setup instructions for immediate use.
Warranty Card:
1-year base coverage (extendable to 5 years).
C-MAP® Discover OnBoard SD Card:
Preloaded with 17,000+ U.S. inland lake charts.
Not Included
Battery: Requires a separate 12V deep-cycle marine battery.
Transducer Pole/Kayak Adapter: Sold separately for kayak/trolling motor use.
Protective Cover: Screen guard not bundled.
Pros and cons for the Lowrance Eagle Eye 9 Fish Finder
| Pros | Cons |
| All-in-One Live Sonar: Integrated transducer eliminates external modules/cables. | Limited Range: Live Sonar degrades beyond 60 ft; optimal under 40 ft. |
| Plug-and-Play Setup: Tool-free twist-lock connectors (15-min install). | Shallow-Water Glitches: Erratic readings in <40-ft depths reported. |
| Power Efficiency: Draws 75% less power than Garmin Livescope. | Warranty Limitations: 1-year base (requires paid extension for 5 years). |
| Preloaded Mapping: C-MAP® Discover charts (17k+ U.S. lakes included). | Blind Spot: Triangular dead zone directly below the Kayak. |
| Kayak-Friendly: Lightweight (1.98 lbs), low power draw, compact transducer. | No Screen Protector: Display is vulnerable to scratches (sold separately). |
Step-by-Step Setup & Installation Guide of Lowrance Eagle Eye 9 Fish Finder
Mounting the Display:
- Attach the gimbal bracket to your boat/kayak dash using the included stainless hardware.
- Slide the 9-inch unit into the bracket; tighten the tilt-swivel knob for stability.
Transducer Placement:
- Mount the transducer arm on the trolling motor/kayak pole (adapter sold separately).
- Position the transducer 1–3 inches below the waterline; avoid turbulent water.
Power Connection:
- Connect the 16-ft power cable’s red/black wires directly to a 12V battery (fuse included).
- Use the tool-free twist-lock connector to link the transducer cable to the display.
How to Use a Lowrance Eagle Eye 9 Fish Finder?
Powering On:
Press the power button; the system auto-launches Live Sonar view.
Sonar View Selection:
Tap the “Sonar” icon to toggle between:
Live Forward (real-time fish ahead)
Live Down (vertical view below the Kayak)
CHIRP (traditional fish arches)
DownScan with FishReveal™ (structure + fish ID overlay).
Autotuning Activation:
Enable “Auto Mode” for instant depth/frequency optimization (no manual adjustments).
Mapping Navigation:
Access preloaded C-MAP® Discover charts via the “Map” tab.
Activate Genesis Live® to record new 0.5-ft contour maps.
Critical Usage Tips
Blind Spot Mitigation:
Slowly move the Kayak forward to scan the “dead zone” below the hull.
Shallow Water Optimization:
Reduce sensitivity to 60% in depths <40 ft to minimize clutter.
Screen Customization:
Split-screen views (e.g., Live Forward + DownScan) via “Layout” menu.
User Experience and Reviews About Lowrance Eagle Eye 9 Fish Finder
| Positive Reviews | Negative Reviews |
| Shows fish clearly as day in shallow water (<40 ft) with minimal setup | Blurry after 60 ft – Live Sonar degrades significantly beyond 60–80 ft, limiting deep-water use |
| Easy to set up with tool-free twist-lock connectors; operational in <15 minutes | Erratic in shallow water – Users report flickering/unstable readings under 40 ft, especially near cover |
| Perfect for kayaks/jon boats due to lightweight design (1.98 lbs) and low power draw (650 mA) | Not for deep-lake trout – Struggles in murky or deep (>80 ft) environments; optimal for inland lakes only |
| FishReveal exposes hidden bass in vegetation/rocks with orange-highlighted targets | Warranty support delays – 1-year base coverage requires paid extension for 5 years; service turnaround criticized |
| Game-changer for part-time anglers – Autotuning and preloaded C-MAP maps simplify real-time decision-making | Needs stabilizer for kayaks – Transducer vibration causes noise without aftermarket arm supports |
Key Takeaways of Lowrance Eagle Eye 9 Fish Finder
Who Should Buy the Lowrance Eagle Eye 9?
- Budget-Conscious Anglers: Seek premium Live Sonar in a budget-friendly range.
- Kayak/Jon Boat Users: Lightweight (1.98 lbs), low power draw (650 mA), compact design.
- Shallow-Water Fishers: Optimal for lakes/rivers <60 ft depth; excels in spotting bass, panfish, pike.
- Tech-Minimalists: Prefer plug-and-play setup (no modules, ethernet, or complex tuning).
- Entry-Level Sonar Upgraders: Transitioning from traditional CHIRP to real-time scanning.
Who Should Skip the Lowrance Eagle Eye 9?
- Deep-Water Anglers: Need clarity >80 ft (e.g., offshore trolling, deep lake trout).
- Multi-Beam Enthusiasts: Require 3-beam scanning.
- Extended Warranty Seekers: Unwilling to pay extra for a 4-year extension (1-year base only).
- Large-Vessel Owners: Prefer networked, multi-display setups (no NMEA 2000 support).
- Murky Water Specialists: Fish in heavy silt/algae (Live Sonar range drops sharply).
FAQs About Lowrance Eagle Eye 9 Fishfinder
How does Lowrance Eagle Eye 9 live sonar work?
The Lowrance Eagle Eye 9 uses a single-beam transducer to deliver real-time sonar views without external modules. Designed as an advanced Sonar For Bass Fishing, it combines Live Forward (scanning ahead of the kayak) and Live Down (vertical view below) with CHIRP Sonar and DownScan Imaging with FishReveal. Autotuning technology optimizes settings automatically for clear fish tracking up to 60–80 feet, though performance degrades beyond 40–60 feet in murky water.
Is the Lowrance Eagle Eye 9 compatible with kayaks?
Yes, its lightweight design (1.98 lbs), low power draw (650 mA), and tool-free twist-lock connector make it ideal for kayaks. The transducer mounts directly on kayak poles or trolling motors (adapter sold separately), and the IPX7 waterproof rating ensures durability in wet conditions. Users note that a stabilizer arm reduces vibration noise in choppy water.
How does Lowrance Eagle Eye 9 compare to Garmin Livescope?
The Eagle Eye 9 offers ~75–80% of Garmin Livescope’s capability at 33% of the cost. Unlike Livescope, it requires no external module or Ethernet cables, but uses a single-beam sonar (vs. Livescope’s multi-beam). It excels in shallow water (<60 ft) but struggles in deep/murky environments where Livescope outperforms.
What maps are included with the Lowrance Eagle Eye 9?
It comes preloaded with C-MAP Discover OnBoard charts covering 17,000+ U.S. inland lakes, including high-resolution contours. Anglers can also create custom 0.5-foot contour maps in real-time using Genesis Live technology. Coastal charts require a separate microSD card (supports up to 32 GB).
What is the warranty for the Lowrance Eagle Eye 9?
Lowrance offers a 1-year base warranty, extendable to 5 years total via a paid upgrade. The warranty covers defects but excludes physical damage (e.g., cracked screens). Users report delays in support claims, prompting recommendations to purchase the extension for long-term use.
Recommended Accessories for Lowrance Eagle Eye 9 Fishfinder with Live Sonar
Essential accessories include the Lowrance Eagle Sun Cover to protect the display from weather and glare. Upgrade to robust third-party transducer mounts (e.g., trolling motor or shaft mounts) for stability beyond the included bracket. Add regional C-MAP DISCOVER or Navionics Plus chart cards for expanded coastal/inland mapping. A high-capacity microSD card (32GB max) aids software updates and Genesis Live recordings.
