Wind and currents challenge kayak anglers by pushing kayaks out of position. Trolling motors with spot lock solve this problem by acting as invisible GPS anchors, holding kayaks steady automatically. Anglers engage spot lock to maintain position without manual adjustments, focusing entirely on fishing.
These motors perform reliably across diverse conditions, such as in calm lakes, choppy seas, freshwater, or saltwater. Beyond anchoring, advanced models help anglers navigate routes or transition between spots efficiently. When selecting among the best trolling motors with spot lock, anglers consider factors like kayak size, water conditions, and budget, with top brands including Minn Kota, Garmin Force, and Newport NV series.
List of Trolling Motors with spot lock
Product Category | Product Name |
Best Overall Trolling Motor With Spot Lock | Minn Kota Ultrex |
Best High-End Trolling Motor With Spot Lock | Garmin Force |
Best Value Trolling Motor With Spot Lock | MotorGuide Xi3 |
Best Saltwater Trolling Motor With Spot Lock | Minn Kota Riptide Terrova |
Best Trolling Motor With Spot Lock for Small Kayaks | Lowrance Ghost |
Best Compact Trolling Motor With Spot Lock | MotorGuide Xi5 |
Best Long-Range Trolling Motor With Spot Lock | Rhodan HD GPS Anchor+ |
Best Budget Trolling Motor With Spot Lock | Newport Vessels NV-Series |
Most Innovative Trolling Motor With Spot Lock | Minn Kota Ulterra |
Most User-Friendly Trolling Motor With Spot Lock | Minn Kota PowerDrive |

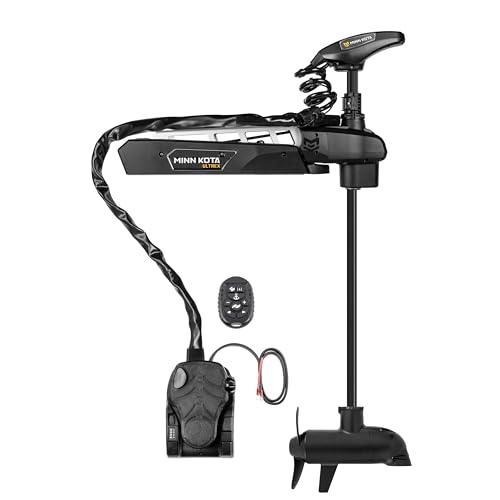

Minn Kota Ultrex – Best Overall Trolling Motor With Spot Lock
- QUEST Series: These 24/36V dual-voltage brushless motors have been completely re-imagined from the ground up with update…
- Power Steering: The most comfortable, responsive steering available. Ultrex’s foot pedal is built for all-day ease, with…
- Steering Lock: When you take your foot off Ultrex’s foot pedal, the motor head remains pointed in the direction you left…
Testers chose the Minn Kota Ultrex as the top spot lock trolling motor for its precise GPS anchoring, quiet operation, and smooth foot pedal. The Minn Kota PowerDrive i-Pilot is the cheapest spot lock trolling motor option, but lacks a foot pedal and has basic mechanics. While the Minn Kota Ultrex integrates well with Humminbird fish finders, testers noted rare spot lock disengagements.
Specifications of Minn Kota Ultrex
Specifications | Ultrex (Original/Non-QUEST) | Ultrex QUEST |
Motor Type | Brushed motor | QUEST Series Brushless motor (dual 24V/36V) |
Thrust | Up to 112 lbs (36V) | 90–115 lbs (24V/36V) |
Runtime | Standard runtime | 30% longer runtime vs. brushed models |
Torque | Standard torque | 50% greater torque (24V) for weed-shedding and control |
Shaft Lengths | 45″, 52″, 60″ | 45″, 52″, 60″ (carbon fiber-infused, lifetime guarantee) |
GPS Features | Spot-Lock, AutoPilot | Advanced GPS Suite: Drift Mode, Dodge, Follow Contour, Jog |
Sonar Integration | Universal Sonar 2 (CHIRP) | MEGA Side/Down Imaging or Dual Spectrum CHIRP (built-in) |
Foot Pedal | Programmable buttons | Power Cable Steer + programmable One-Kayak Network key |
Control Options | Foot pedal, Micro Remote | Foot pedal, Micro Remote, One-Kayak Network App, Humminbird integration |
Battery Monitoring | Standard battery meter | Real-time monitoring + Eco Mode activation at 20% battery |
Lift Assist | Gas-charged spring | Enhanced lift-assist with auto-alignment |
Propellers | Power Prop, Weedless Wedge | Same props + optimized for brushless torque |
Warranty | 3-year with registration (shaft lifetime) | Same, with upgraded mount durability |
Features of Minn Kota Ultrex and Minn Kota Ultrex QUEST Bow-Mount Trolling Motor
A comparison of engineering advancements and freshwater angling solutions designed to optimize performance, reliability, and control across diverse fishing scenarios. Here are its standout features in detail:
Precision Anchoring System
The Minn Kota Ultrex’s Spot-Lock technology uses GPS to anchor the Kayak automatically, adjusting thrust and direction to counteract wind or current. Anglers can focus on casting without manually repositioning, ideal for holding structure or targeting specific fish-holding zones.
Integrated Sonar Compatibility
Universal Sonar 2 supports seamless integration with Humminbird fish finders, eliminating exposed transducer cables. This streamlined setup ensures clutter-free sonar data directly through the motor’s concealed transducer.
User-Centric Control Design
The heel-toe foot pedal merges cable-steer responsiveness with programmable shortcuts for Spot-Lock and AutoPilot. Its ergonomic design reduces fatigue during extended use, while the Micro Remote enables wireless adjustments from anywhere on the Kayak.
Durable Construction
A composite shaft and reinforced mount withstand impacts from submerged debris. The nitrogen lift-assist mechanism simplifies stowing and deploying the motor, even under heavy loads.
Battery Efficiency
A built-in battery meter provides real-time power status, allowing anglers to manage runtime effectively. The motor’s brushed design prioritizes consistent performance across varying conditions.
Next-Generation Motor Performance
The QUEST Series brushless motor operates silently, reducing fish-spooking noise while delivering 50% more torque for cutting through thick vegetation. Its dual-voltage (24V/36V) flexibility balances power and runtime efficiency.
Adaptive Navigation Modes
Drift Mode simulates a controlled drift using GPS-guided speed adjustments, while Dodge automatically reroutes the Kayak around obstacles. Follow Contour tracks and depth contours for hands-free shorelining.
Enhanced Sonar Imaging
Built-in MEGA Side/Down Imaging provides high-resolution underwater views without the need for external transducers. Compatibility with MEGA 360 and MEGA Live allows anglers to scan 360° or track moving baitfish in real time.
Smart Battery Management
Real-time monitoring and Eco Mode alerts optimize power consumption, extending runtime by up to 30%. The system automatically reduces output at 20% battery, prioritizing reserve power for critical moments.
Reinforced Structural Integrity
A carbon-fiber shaft with a lifetime guarantee resists flex and corrosion. The redesigned mount distributes stress evenly, enhancing durability in rough conditions.
Garmin Force – Best High-End Trolling Motor With Spot Lock
- Trolling motor: The Garmin Force is a high-quality trolling motor designed for use in various water conditions.
- 57″ length: This trolling motor has a shaft length of 57 inches, making it suitable for different boat sizes and depths.
- Reliable performance: It provides reliable and efficient propulsion, allowing for smooth and precise navigation on the w…
The Garmin Force is a top contender for the best trolling motor with spot lock, offering anglers precise boat control. Testing confirms exceptional performance. Its GPS anchor lock holds position remarkably steady, even in tough conditions, outperforming others by minimizing constant adjustments.
Powered especially well on 36V, it effortlessly maneuvers larger boats in the wind. The brushless design draws significantly less battery power than traditional motors. While excellent, it occasionally experiences minor software glitches, and selecting the proper shaft length is crucial for optimal performance.
Specifications & Features of Garmin Force Electric Trolling Motor
Categories | Details |
Shaft Length | 57″ stainless steel shaft, corrosion-resistant design |
Thrust | 80 lb. thrust (24V) / 100 lb. thrust (36V) with high-efficiency propeller |
Voltage | Configurable for 24V (2 batteries) or 36V (3 batteries) systems |
Motor Type | Brushless motor for quiet operation, minimal sonar interference, and energy efficiency |
Sonar Integration | Built-in CHIRP, ClearVü (800 kHz), and SideVü (455/1200 kHz) scanning sonar for ultra-high-definition imaging |
GPS Features | Anchor Lock, AutoPilot, Route Following, Heading Hold, and Jog+ for precise positioning |
Controls | Wireless foot pedal (IPX7 waterproof) and floating remote with gesture steering |
Mounting | Scissor-style bow mount; requires drilling for installation |
Lift Assist | Dual gas springs for easy stowing/deploying |
Battery Life | Foot pedal: 1 season on 2 AA batteries; remote: ~43 weeks (low backlight) |
Durability | Corrosion-resistant components, IPX7 waterproof rating for remote/pedal |
Warranty | 3-year limited warranty; lifetime coverage on composite shaft |
Weight | 109.1 lbs (motor only) |
Compatibility | Integrates with Garmin chartplotters, LiveScope transducers, and smartwatches |
Additional Features | Adjustable depth collar for propeller positioning 20-step variable speed control Cable management for transducer installation |
Factors To Consider Before Buying A Garmin Force Trolling Motor
Choosing the right trolling motor requires balancing performance, compatibility, and long-term value. Below are critical factors to weigh before making a purchase:
Boat Size and Weight:
A motor’s thrust power must align with your vessel’s size. Larger boats (18+ feet) demand higher thrust (e.g., 80–100 lb) to combat resistance, while smaller craft can use lighter systems. For instance, the Garmin Force 57-inch motor offers 80 lb thrust at 24V or 100 lb at 36V, ideal for mid-sized bass boats.
Shaft Length:
Too short, and the propeller cavitates in rough water; too long, and it drags. The 57-inch stainless steel shaft on the Garmin Force suits boats with high gunwales or deep hulls, ensuring consistent submersion.
Voltage Compatibility:
24V systems balance power and runtime for most freshwater anglers, but 36V setups (like Garmin’s 100 lb thrust mode) extend endurance for multi-day trips. Ensure your battery setup matches the motor’s requirements.
Control Type:
Wireless foot pedals and remote controls offer flexibility, while integrated chartplotter compatibility (a Garmin Force strength) streamlines navigation. Test responsiveness—sticky buttons or lag can ruin precision.
Anchor Lock Technology:
GPS-based systems like the Force’s anchor lock hold position against wind/current, crucial for vertical jigging or drift fishing. Multi-band GPS (in the Force Pro) adds accuracy in dense cover or bad weather.
Sonar Integration:
Motors compatible with live imaging (e.g., Garmin LiveScope) turn your trolling system into a fish-finding hub. Verify transducer compatibility and ease of installation.
Durability and Weatherproofing:
Saltwater anglers need corrosion-resistant materials. The Garmin Force’s IPX7-rated wireless pedal and stainless steel shaft withstand splashes, but check warranties (3-year coverage here) for peace of mind.
Budget and Long-Term Value:
High-end motors like the Garmin Force (2,700–3,600) justify costs with brushless efficiency and tech integration. Compare upfront prices against fuel savings and durability over time.
By prioritizing these factors, anglers can invest in a trolling motor that does not complicate their time on the water. The Garmin Force 57-inch model, with its adaptive thrust and smart features, exemplifies a system built for anglers who value precision over compromises.
MotorGuide Xi3 – Best Value Trolling Motor With Spot Lock
- Wireless remote control lets you precisely operate the motor from anywhere on the boat
- Innovative mount features easy-to-read LED dashboard that lets you quickly check the status of four key functions in any…
- Efficient motor provides best-in-class quiet operation that’s up to 40 percent quieter than the leading competitor
Testers found the MotorGuide Xi3’s Pinpoint GPS spot lock impressively accurate, anchoring boats well even in wind or current. They appreciated the responsive wireless remote but noted its batteries drain quickly, advising spares. The 55-pound thrust capably handled small-to-medium boats quietly.
Installers found mounting straightforward. While testers valued its fish finder compatibility, they observed slightly less spot lock precision in extreme conditions versus premium models and noted occasional steering or plastic durability concerns.
Specifications of MotorGuide Xi3 Freshwater Trolling Motor
Feature | Specification | Details |
Peak Thrust | 55 lbs | Sufficient for kayaks and small boats, even in windy conditions |
Shaft Length | 36 inches | Kayak-optimized length for seated deployment |
Voltage | 12V DC | Standard kayak-compatible voltage |
Control Method | Wireless FOB Remote (included) | Handheld emote for intuitive steering; optional foot pedal compatible |
GPS Capabilities | Pinpoin GPS (optional/model-dependent) | Anchor Lock, Heading Lock, Route Record; 3x more precise positioning than competitors. |
Stow/Deploy System | SecureStep™ Lever | 50% easier deployment/stowing than competitors; operable seated/standing |
Noise Level | 40% quieter than competitors | Near-silent operation for stealthy fishing |
Propeller | 3-blade Machete | Efficient thrust with reduced weeds/debris entanglement |
Battery Management | Digital Power Management | Extends battery life up to 5x. |
Max Amp Draw | 52A | Lower power consumption vs. traditional motors |
Dashboard | LED Indicators (Power, Propeller, GPS, Battery) | Visible in bright sunlight. |
Compatibility | Select kayaks (e.g., Hobie Pro Angler, Nucanoe, Bonafide SS127) | Requires manufacturer-specific mounts |
Weight | 41.8 lbs (motor only) | Lightweight design for kayak stability |
Warranty | 1-year limited | Covers manufacturing defects. |
Features of MotorGuide Xi3 Freshwater Trolling Motor
The MotorGuide Xi3 freshwater Trolling Motor For Fishing Kayak comes packed with features designed to enhance your fishing experience:
Power and Speed
The MotorGuide Xi3 freshwater Trolling Motor For Fishing kayaks provides ample power to move most kayaks efficiently. We tested the 55-pound thrust version on a 14-foot kayak and found it had no trouble propelling the boat, even against moderate wind and current.
At full throttle, we reached speeds of about 3.5 mph in calm conditions. While that might not sound fast, it’s more than enough for most fishing situations and significantly faster than paddling.
Spot-Lock Performance
The spot-lock feature is one of the main selling points of the MotorGuide Xi3 freshwater Trolling Motor For Fishing Kayak, and it generally works well. In calm conditions, it kept our kayak within a 5-foot radius of the locked position.
However, in stronger winds or currents, we noticed some drift. The motor would correct course, but there was a bit of a “bounce” effect as it moved back and forth. It still kept us in the general area, but don’t expect perfect stillness in challenging conditions.
One issue we encountered was GPS signal loss in heavy cloud cover. It didn’t happen often, but when it did, the MotorGuide Xi3 freshwater spot lock feature became unreliable. If you frequently fish in overcast conditions, this is something to keep in mind.
Battery Life
Battery life with the MotorGuide Xi3 freshwater Trolling Motor For Fishing Kayak varies depending on usage. On average, we get about 8-10 hours of use at moderate speeds.
However, if you’re using spot-lock frequently or fighting strong currents, expect that to decrease.
The motor draws up to 52 amps at full power, so a high-capacity deep cycle battery is recommended. For all-day fishing trips, consider bringing a spare battery or portable charger.
Ease of Use
The MotorGuide Xi3 freshwater Trolling Motor for Fishing kayaks scores high points for user-friendliness. The wireless remote is intuitive and responsive, allowing you to control speed and direction without reaching for the motor.
The deploy and stow mechanism is simple and quick to operate. We could set up or pack away the motor in under a minute, which is handy when you’re moving between fishing spots or dealing with changing weather.
However, we did encounter an issue with the remote control battery life. In some cases, it seemed to drain faster than expected, even when not in use. Keep spare batteries on hand to avoid being caught out.
Durability and Build Quality
After several months of regular use, the MotorGuide Xi3 freshwater Trolling Motor for Fishing Kayak held up well. The construction feels solid, with no signs of corrosion or wear on the main components.
The shaft and propeller withstood encounters with underwater obstacles without damage. However, as with any marine electronics, proper care is crucial. Always rinse the motor with fresh water after use, especially if you’ve been in saltwater.
Regular checks of the propeller, shaft, and mounting hardware are recommended to catch any potential issues early.

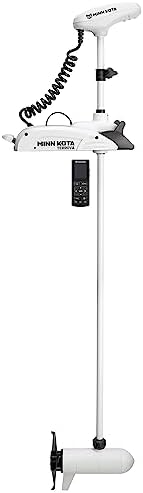

Minn Kota Riptide Terrova – Best Saltwater Trolling Motor With Spot Lock
- Stow/Deploy Lever: Press this lever on the mount and fall-away ramps will effortlessly slide your trolling motor into th…
- Advanced Corrosion Protection: Riptide motor lower unit housings are grit-blasted, then coated in aluminum to prevent ox…
- Advanced GPS Trolling System: The most-trusted navigation system in fishing. Riptide Terrova uses GPS to control your tr…
The Minn Kota Riptide Terrova excels as the premier saltwater trolling motor for anglers, featuring reliable spot lock technology. Its i-Pilot GPS maintains position accurately, even in rough conditions. Offering up to 112 pounds of thrust, it handles larger boats quietly. Corrosion-resistant construction ensures durability, though users should rinse it after use.
The wireless remote adds convenience, but testers note potential reliability issues in humidity. It integrates well with fish finders, enhancing navigation via autopilot and jog functions. However, the setup presents a learning curve, and some users express concerns about plastic component durability.
Minn Kota Riptide Terrova Technical Specifications
Specifications | Details |
Thrust & Voltage | 55 lbs (12V), 80 lbs (24V), 112 lbs (36V). Dual-voltage QUEST models (90/115 lbs) Also available (24V/36V) |
Shaft Lengths | 55 lbs (12V), 80 lbs (24V), 112 lbs (36V). Dual-voltage QUEST models (90/115 lbs) are also available (24V/36V) |
GPS Technology | Advanced GPS (replaces i-Pilot/i-Pilot Link). Includes Spot-Lock with Jog, Drift Mode, Dodge Mode, AutoPilot, i-Tracks, Circle Mode, and Follow Mode |
Control Methods | Wireless remote (LCD screen), One-Boat Network app (iOS/Android), Humminbird fishfinder integration, optional foot pedal (sold separately) |
Battery & Runtime | 24V models: Two 12V marine batteries or one 24V LiFePO4 (min 50AH). Max draw: 56A. Digital Maximizer extends runtime 5×. Estimated runtime: 20+ hrs (low speed), 2.4 hrs (max speed) |
Propeller | Weedless Wedge 2 prop (MKP-32 for 55-lb, MKP-33 for 80-lb, MKP-38 for 112-lb). Saltwater-optimized design |
Stow/Deploy System | Lever-activated with fall-away ramps + Auto-Park alignment. Manual operation (no power assist) |
Corrosion Protection | Triple-layer: Grit-blasted base, aluminum coating, powder coat paint |
Networking & Connectivity | One-Boat Network via Ethernet cable (Humminbird integration). Bluetooth app control. Includes AS-EC-QDE adapter |
Mounting | Bolt-on (direct hull mounting). Compatible with quick-release brackets: RTA-17 (54″/60″ shafts), RTA-62 (72″ shaft) |
Included Components | Motor, Advanced GPS remote, heading sensor, ethernet cables, power leads (no plugs), MKP-series prop, mounting hardware, stabilizer kit (72″ models). |
Warranty | 2-year limited warranty + lifetime composite shaft guarantee. 3rd year coverage with registration. |
Features of Minn Kota Riptide Terrova
Advanced GPS Navigation & Automation
The Terrova integrates Minn Kota’s next-generation Advanced GPS Trolling System, replacing legacy i-Pilot technology. This system enables Spot-Lock with Jog, which holds your boat in place with exceptional accuracy and allows 5-foot positional adjustments via a heading sensor.
Saltwater-Optimized Durability
Engineered for harsh marine environments, the Terrova boasts triple-layer corrosion protection: grit-blasted housing, aluminum oxidation coating, and powder coat paint. The indestructible composite shaft—reinforced with carbon fiber in QUEST models—carries a lifetime guarantee against breakage.
Multi-Channel Control Ecosystem
Operate the Terrova via:
- A rugged wireless remote with an LCD screen and a rubberized grip, designed to withstand wet conditions
- The One-Boat Network app (iOS/Android) for smartphone control
- Humminbird fish finder integration via Ethernet connectivity
- An optional 18-foot cord foot pedal (sold separately)
This ecosystem allows simultaneous control methods—e.g., use the remote while leveraging Humminbird’s mapping—for seamless transitions between navigation styles.
Power Efficiency & Battery Management
Digital Maximizer™ technology extends battery runtime up to 5× by modulating power output to match speed demands. QUEST models add Eco Mode, triggered automatically at 20% battery, reducing current draw for critical runtime extension. Real-time battery monitoring displays “time until empty” estimates, while 24V/36V dual-voltage support (QUEST series) offers flexibility for larger boats. The motor operates near-silently for stealthy approaches.
Ergonomic Deployment & Steering
A lever-activated stow/deploy system uses fall-away ramps and Auto-Park alignment for one-handed operation. The pendulum-like weight distribution reduces lifting effort, while the adjustable depth collar optimizes propeller submersion. Electric power steering ensures responsive handling, and the Weedless Wedge 2 propeller (standard) or MKP-40 Power Prop (QUEST) minimizes snags in vegetation.
Integrated Fishing Ecosystem
As the centerpiece of Minn Kota’s One-Boat Network, the Terrova syncs with compatible Humminbird units to unlock features like Follow Mode, contour tracking, and waypoint-based navigation. Record a Spot-Lock point on your fish finder, and the motor auto-navigates back to it. The system also supports firmware updates, ensuring future enhancements keep the motor current.
Lowrance Ghost – Best Trolling Motor With Spot Lock For Small Kayaks
- SILENT OPERATION: Move in close with Ghost’s ultra-quiet brushless motor – fish will never hear you coming
- RELIABLE: After 4 years and 10,000 testing hours, we have delivered one of the quietest, most reliable, and most powerfu…
- PLUG-AND-PLAY LOWRANCE SONAR: Ghost includes an HDI nosecone transducer, giving you Lowrance CHIRP sonar and DownScan Im…
The Lowrance Ghost offers small kayak anglers a powerful, compact trolling motor with spot lock. Its brushless 24-36V design delivers strong performance while maintaining quiet operation, ideal for shallow fishing. Kayak anglers can choose 24V or 36V systems, maximizing flexibility with lightweight lithium batteries for extended runtime. Tests confirm the Ghost’s spot lock maintains position accurately, even in wind or current, making it a top spot lock trolling motor for kayak fishing.
The efficient brushless motor prolongs battery life, critical for kayaks. Users will find the responsive control system enables precise maneuvering in tight spaces, though the included foot pedal suits larger boats and may require kayak anglers to explore DIY or aftermarket mounting solutions.
Specifications of Lowrance Ghost Trolling Motor Specifications & Kayak Suitability
Specifications | Details |
Model Type | Freshwater trolling motor (non-kayak specific) |
Shaft Lengths | 52″ or 60″ composite (lifetime warranty) |
Thrust | 97 lbs (24V) / 120 lbs (36V) |
Motor Technology | Brushless propulsion (ultra-quiet, zero EM interference) |
Voltage | Auto-detects 24V/36V systems |
Control | Foot pedal, wireless remote (TMR-1), or Lowrance fish finder integration |
Weight | ~80–90 lbs (head unit + shaft) |
Anchoring | GPS spot lock via Lowrance HDS/Carbon displays |
Mount | 360° breakaway (self-realigning) |
Sonar Compatibility | Plug-and-play Lowrance transducers (HDI included; Active Imaging optional) |
Key Features of Lowrance Ghost
The Lowrance Ghost Trolling Motor comes packed with features designed to improve your fishing kayak experience:
Brushless Motor: Engineered for quiet operation and improved efficiency.
GPS Anchor Lock: Maintains position even in wind and currents.
Multiple Thrust Options: Available in 47″, 52″, and 60″ shaft lengths to suit different kayak sizes.
Lowrance Fish Finder Integration: Seamlessly connects with HDS Live and Elite FS units.
Dual Operating Voltage: Compatible with both 24V and 36V systems for flexible power setups.
Programmable Foot Pedal: Customizable buttons for quick access to frequently used functions.
Wireless Remote Control: Allows for easy operation from anywhere in the kayak.
These features combine to create a versatile tool for kayak anglers, offering both power and precision on the water.
Power and Speed
During our tests, the Lowrance Ghost Trolling Motor demonstrated impressive power output for a kayak-mounted motor. It efficiently propelled our test kayaks, even in challenging conditions like strong winds and currents. We tested the 55-pound thrust version on a 14-foot fishing kayak and recorded speeds up to 3.5 mph in calm conditions. While this might not sound fast, it’s more than sufficient for most kayak fishing situations and significantly faster than paddling.
Battery Life and Efficiency
One of the standout features of the Lowrance Ghost Trolling Motor is its energy efficiency. During our tests, we consistently achieved 8-10 hours of use at moderate speeds on a single charge. This extended runtime is particularly beneficial for kayak anglers who often have limited space for extra batteries. The motor’s dual voltage capability (24V and 36V) offers flexibility in power setups, allowing anglers to choose based on their specific needs and kayak configurations.
Noise Levels
The Ghost lives up to its name in terms of quiet operation. At low to medium speeds, it’s nearly silent, which is crucial when approaching easily spooked fish. Even at higher speeds, the noise level remains low, especially compared to traditional brush-motor designs.
GPS Anchor Lock Performance
The GPS anchor lock feature is one of the Lowrance Ghost Trolling Motor’s highlights. In our tests, it consistently held our kayak within a 5-foot radius of the locked position in calm conditions. This feature is particularly useful when fishing structure or during vertical jigging sessions.
However, in stronger winds or currents, we observed some drift. The motor would correct course, but there was a slight “bounce” effect as it moved back and forth. While it still kept us in the general area, it’s worth noting that perfect stillness shouldn’t be expected in challenging conditions.
MotorGuide Xi5 – Best Compact Trolling Motor With Spot Lock
- Wireless handheld control lets you precisely operate the motor from anywhere on the boat
- Innovative mount features easy-to-read LED dashboard that lets you quickly check the status of four key functions in any…
- Pinpoint GPS is the industry’s most accurate GPS, provides 3 times precision control and a tighter hold on your anchor p…
The MotorGuide Xi5 leads compact spot-lock trolling motors, packing power into a smaller size. Testing confirms its excellence for anglers wanting advanced features. Its Pinpoint GPS delivers accurate spot lock, holding position reliably in challenging conditions.
The wireless remote offers convenient operation but requires spare batteries. An optional foot pedal adds versatility. Despite its size, the Xi5 provides impressive, quiet power for small-to-medium boats. Integration with Lowrance enhances functionality, though testing revealed occasional GPS loss and durability concerns.
Specifications of MotorGuide Xi5 Saltwater Wireless Bow Mount Trolling Motor
Specifications | Xi5 55LB | Xi5 80LB | Xi5 105LB |
Thrust | 55 lbs | 80 lbs | 105 lbs |
Voltage | 12V | 24V | 36V |
Shaft Length | 48″, 54″, 60″ | 48″, 54″, 60″ | 60″, 72″ (select retailers) |
Control Method | Wireless handheld remote | Wireless handheld remote | Wireless handheld remote |
Key Features | Composite shaft (lifetime warranty) PinPoint GPS anchoring, Corrosion-resistant hardware | LED dashboard NMEA 2000 compatibility Enhanced thrust for Kayaks up to 4,000 lbs | High-efficiency digital speed control Integrated sonar compatibility Extended 72″ shaft option |
Features of MotorGuide Xi5 Saltwater Wireless Bow Mount Trolling Motor
Engineered for precision in harsh marine environments, this motor balances innovation with rugged reliability to meet the demands of serious offshore fishermen. Here are its standout features:
Precision GPS Anchoring for Unmatched Stability
The MotorGuide Xi5 Saltwater’s PinPoint GPS technology eliminates drift in open water, holding Kayaks within a 3-foot radius even in choppy conditions. Anglers can lock onto productive fishing spots, maintain consistent trolling paths with Cruise Control, or retrace routes via pre-recorded tracks. This system adapts dynamically to wind and current shifts, ensuring hands-free focus on casting and reeling.
Wireless Freedom and Intuitive Control
Steering no longer requires a fixed foot pedal or manual adjustments. The wireless handheld remote allows operators to adjust speed, direction, and GPS modes from anywhere on the Kayak—or even the dock. For traditionalists, an optional saltwater-rated foot pedal offers tactile responsiveness without sacrificing the motor’s wireless versatility.
Saltwater-Optimized Durability
Engineered for harsh marine environments, the MotorGuide Xi5 saltwater combines a corrosion-resistant composite shaft (backed by a lifetime warranty) with sealed electronics to repel moisture and salt intrusion. Stainless steel hardware and an anodized aluminum mount further shield critical components from rust, ensuring longevity in coastal or offshore use.
Efficient Power Management for Extended Excursions
Advanced digital speed control minimizes energy waste, balancing thrust output with battery conservation. While GPS functions draw additional power in rough currents, the motor’s low-speed efficiency supports full-day trips. Anglers can maximize runtime by pairing it with deep-cycle or lithium batteries, which also reduce overall weight.
Seamless Integration with Marine Electronics
The MotorGuide Xi5 saltwater syncs effortlessly with Lowrance chartplotters via NMEA 2000 networks, displaying motor status and GPS data directly on fish finder screens. Built-in sonar compatibility supports basic depth and structure tracking, though advanced imaging requires third-party transducers.

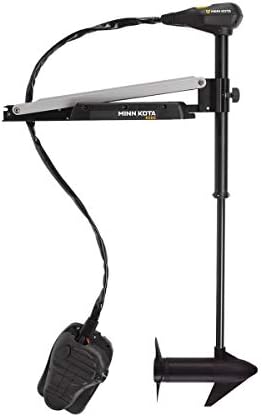

Minn Kota Edge Freshwater Bow-Mount Trolling Motor with Spot Lock
Minn Kota Edge Freshwater Bow-Mount Trolling Motors redefine value for budget-conscious anglers. They balance trusted reliability with essential performance in unpredictable freshwater conditions. Built to withstand rugged use without premium pricing, these motors cater to anglers prioritizing practicality over high-tech add-ons.
Quiet operation and intuitive controls ensure minimal disruption on the water, while versatile 12V and 24V configurations adapt to varying Kayak sizes. Though stripped of advanced integrations, the Minn Kota Edge series thrives where it matters most: delivering consistent power and durability for anglers focused on simplicity and cost-efficiency in freshwater fishing.
- Latch & Door Bracket: This bracket gives you a rock-solid hold while stowing your trolling motor and makes for easy remo…
- Heel-Toe / Cable-Steer Foot Pedal: Get heel/toe control of your motor with this ultra-responsive foot pedal that include…
- 5-Speed Settings: Choose from five speed settings to dial in the right speed control when you’re trolling.
Specifications of Minn Kota Edge Freshwater Bow-Mount Trolling Motor with Spot Lock
Specifications | Details |
Thrust | 45 lb, 55 lb, or 70 lb. |
Voltage | 12V (45 lb, 55 lb) or 24V (70 lb) |
Shaft Length | 36″, 45″, or 52″ (model-dependent; 45″ standard for 45 lb/55 lb models) |
Controller Type | Foot pedal (cable-steer) or hand tiller |
Speed Settings | 5 forward speeds / 3 reverse speeds (foot pedal models) or 5-speed (hand tiller) |
Propeller | Power Prop (45 lb models) or Weedless Wedge 2 (55 lb/70 lb models) |
Mounting System | Anodized aluminum Latch & Door bracket for secure stowing and easy removal |
Shaft Material | Indestructible composite (lifetime warranty) |
Warranty | 2-year limited warranty (motor); lifetime guarantee on composite shaft |
Noise Level | Low-friction bearings and cooling systems ensure quiet operation |
Features of Minn Kota Edge Freshwater Bow-Mount Trolling Motor with Spot Lock
The Minn Kota Edge balances rugged durability, user-friendly design, and adaptable performance for anglers prioritizing reliability in freshwater conditions without premium pricing. Here are its detailed features:
Durable Construction
The Minn Kota Edge series prioritizes longevity with an indestructible composite shaft, backed by a lifetime warranty, designed to flex under impact and resist corrosion. Its hybrid composite motor head withstands collisions, while the anodized aluminum Latch & Door mount ensures secure stowing and stability. Built for freshwater environments, the materials combat wear from rocks, weeds, and constant use.
Performance and Control
Available in 45 lb, 55 lb, and 70 lb thrust options, the motors cater to small and mid-sized Kayaks. Foot-pedal models feature cable-steer controls with five forward and three reverse speeds for precise maneuvering, while hand-tiller versions use a tilt-twist grip. Quiet operation, enabled by low-friction bearings and advanced cooling systems, minimizes fish disturbance.
Propeller Options
Models include specialized propellers: the MKP-2 Power Prop (45 lb thrust) optimizes RPM efficiency, while the Weedless Wedge 2 (55 lb and 70 lb models) slices through vegetation. Both designs enhance performance in diverse freshwater conditions.
Newport Vessels NV-Series – Best Budget Trolling Motor With Spot Lock
- Efficient Power: 55Lb Thrust – This 12V Electric Trolling Motor Provides Excellent Power And Efficiency For Any Boater. …
- Features: This Motor Features A 30 Inch Shaft, A 5 Led Battery Meter, A 6 Inch Telescoping Tiller Handle, And 3 Blade Pr…
- Speed: This Motor Has 8 Speeds, 5 Forward And 3 Reverse. The Motor Is Designed For Trolling, So The Top Speed Of This Mo…
The Newport Vessels NV-Series offers anglers an affordable GPS-enabled trolling motor with spot lock. Testers found it provides good value, though with trade-offs. Its GPS spot lock performed adequately in calm to moderate conditions, maintaining position sufficiently for most fishing. Testers appreciated its quiet operation and decent power for its class, which handled their test boat effectively.
The saltwater-friendly design, featuring corrosion-resistant components, enhances its versatility for both environments. However, testers noted the spot lock drifted more in wind or currents than premium GPS-enabled motors, and the construction felt less robust.
Specifications of Newport Vessels NV-Series
Specification | Details |
Thrust Options | 36 lb, 46 lb, 55 lb (URL shows 55 lb variant) |
Voltage | 12V |
Shaft Length | 30 inches (standard) |
Speed Settings | 5 forward speeds / 3 reverse speeds |
Motor Type | Saltwater-optimized (corrosion-resistant seals and components) |
Mount Type | Transom-mount |
Propeller | 3-Blade weedless |
Control | Tiller handle with adjustable tension |
Circuit Protection | 60-amp built-in circuit breaker |
Boat Compatibility | Small to medium vessels (kayaks, jon boats, skiffs up to 16 ft) |
Durability Features | Stainless steel hardware, reinforced nylon mount, anodized aluminum shaft |
Warranty | 2-year limited warranty |
Features of Newport Vessels NV-Series
Power & Performance
The NV-Series offers thrust options from 36lb to 86lb, accommodating boats from small kayaks to vessels over 16 feet. Lower-thrust models (36lb–55lb) use 12V batteries, while higher-thrust models (62lb–86lb) require 24V systems for enhanced power. Its brushed motor delivers horsepower equivalents up to 1.5 HP (86lb model) and operates at 5 forward and 3 reverse speeds, ideal for precise trolling control. The 3-blade propeller (or 2-blade on 36lb models) ensures efficiency in weedy conditions, with a top speed around 3 mph, depending on watercraft size and conditions.
Design & Durability
Engineered for saltwater and freshwater use, the motor features corrosion-resistant materials, including stainless steel, zinc, and magnesium hardware, plus an anodized aluminum shaft. The transom mount is adjustable for angle, height, and direction, fitting kayaks, jon boats, skiffs, and inflatables up to 16+ feet. Shaft lengths come in 30″ (smaller models) or 36″ (larger models), with a lightweight build (18–25 lbs) for easy handling. A waterproof housing protects internal components from splashes and immersion.
Control & Usability
The 6″ telescoping tiller handle adjusts for operator comfort, while the integrated 5-point LED battery meter provides real-time power monitoring. For safety, a built-in circuit breaker (40A–60A, depending on thrust) prevents voltage surges. The motor operates quietly to avoid spooking fish and includes a quick-release bracket for effortless storage. Installation is simplified with included drive pins, wrenches, and a manual.
Battery & Electrical
Compatible with deep-cycle lead-acid or lithium batteries (sold separately), the NV-Series draws 29A–58A at max speed, with a recommended 50Ah minimum capacity for 12V models. The 24V models (62lb/86lb thrust) offer higher efficiency for larger boats, reducing battery drain during extended use. Wiring includes 10-foot battery cables, and extensions are available for flexible setup.
Minn Kota Ulterra – Most Innovative Trolling Motor With Spot Lock
- Auto Stow & Deploy: Stow or deploy Ulterra just by pushing a button on your wireless remote, foot pedal, the One-Boat Ne…
- Power Trim: Trim Ulterra up or down at the push of a button — on either the foot pedal, the wireless remote, the One-Boa…
- Advanced GPS Trolling System: The most-trusted navigation system in fishing. Ulterra uses GPS to control your trolling m…
The Minn Kota Ulterra excelled in tests for its innovations, including accurate Spot-Lock positioning and unique auto-deploy/stow features. Its i-Pilot integration offers advanced functions like Jog. Testers particularly valued the power trim for adjusting depth during operation.
While Humminbird compatibility enhances functionality, other brands lose advantages. However, the auto-feature sometimes requires manual help, and its complexity introduces more potential failure points than simpler motors.
Specifications of Minn Kota Ulterra Trolling Motor
Feature | Ulterra 80 (Standard) | Ulterra 112 (High Thrust) | Ulterra QUEST (Dual Voltage) |
Thrust Power | 80 lbs | 112 lbs | 90 lbs (24V) / 115 lbs (36V) |
Shaft Length Options | 45″, 54″, 60″ | 45″, 60″, 72″ | 45″, 60″, 72″ |
Voltage | 24V (2x 12V batteries) | 36V (3x 12V batteries) | 24V or 36V (configurable) |
GPS Control | i-Pilot / i-Pilot Link | i-Pilot / i-Pilot Link | Advanced GPS with One-kayak Network |
Auto-Deploy/Stow | Yes | Yes | Yes (Redesigned worm-drive system) |
Sonar Integration | Universal Sonar 2 | Optional MEGA Imaging | MEGA Side/Down Imaging or CHIRP |
Battery Runtime | ~3–5 hours (full thrust) | ~2–4 hours (full thrust) | ~4–20+ hours (variable speed) |
Weight | 66–77 lbs | 73–85 lbs | 68–75 lbs |
Kayak Compatibility | Kayaks up to 4,000 lbs | kayaks up to 7,500 lbs | Kayaks up to 10,000 lbs |
Warranty | 2-year limited | 2-year limited | 2-year (3-year with registration) |
Features of Minn Kota Ulterra Trolling Motor
The Ulterra comes with advanced features that make it easier to use. From remote control operation to GPS-guided navigation, these technologies set it apart from simpler trolling motors.
Remote Control
The included remote is well-designed and easy to use. All the main functions are easy to access, and the screen is clear and readable even in bright sunlight. The remote’s range is good, and we could control the motor from anywhere on our fishing kayak without issues.
Foot Pedal
For those who prefer traditional control, the included foot pedal works well. It offers precise speed and steering control and has buttons for main functions like Spot-Lock and auto stow/deploy.
i-Pilot System
The i-Pilot GPS is a powerful addition to the Ulterra. Key features include:
Spot-Lock: Holds your position quite accurately.
iTracks: Let’s you record and retrace paths, great for following a good fishing line.
AutoPilot: Keeps a constant heading, adjusting for wind and current.
Cruise Control: Maintains a constant speed, useful for trolling.
These features work well together and add a lot of value to the overall package.
Sonar Compatibility
Our test unit came with Universal Sonar 2, which works with many fish finders. The built-in transducer means you don’t need extra wiring, keeping your fishing kayak neater and more organized.
Durability And Reliability
After several weeks of testing, the Ulterra has held up well. It feels solid, and all parts continue to work smoothly. However, we’ve heard that older Ulterra models had some reliability issues, particularly with the auto stow/deploy mechanism. Only long-term use will show if these issues have been fixed in the latest version.
The shaft seems resistant to bending or breaking, even when we accidentally hit underwater objects. The prop did a good job of clearing weeds without losing power.
Battery Life
With the 24-volt system, we consistently got full days of fishing (8-10 hours) without running out of power. This was with regular use of the motor, including frequent use of Spot-Lock. The Digital Maximizer technology seems to help save power.
Minn Kota PowerDrive – Friendly Trolling Motor With Spot Lock
- Deploy-Assist Lever: Get in and out of the water easily. Just depress the lever to deploy your trolling motor and when i…
- Advanced GPS Trolling System: The most-trusted navigation system in fishing. PowerDrive uses GPS to control your trollin…
- Built-In Dual Spectrum CHIRP Sonar: Keeps your transducer and wiring completely concealed and protected running everythi…
The Minn Kota PowerDrive features a user-friendly design and reliable spot lock functionality, making it an excellent trolling motor for anglers prioritizing ease of use and solid performance. Its spot lock holds position effectively in various conditions, proving adequate for most fishing situations, though it’s less precise than some high-end models. Intuitive controls include a responsive foot pedal and the convenient optional i-Pilot remote.
The Deploy-Assist Lever simplifies launching and retrieving, especially for solo anglers. Digital maximizer technology efficiently manages power, extending time on the water. While offering good overall performance, the Minn Kota PowerDrive struggles slightly in very strong currents and lacks some advanced features found in higher-end models.
Specifications of Minn Kota PowerDrive Freshwater Electric-Steer Bow-Mount
Specifications | General Details | 45 lbs / 48″ Variant | 70 lbs / 60″ Variant |
Thrust Power | 45, 55, 70 lbs (varies by model) | 45 lbs | 70 lbs |
Shaft Length | 48″, 54″, 60″ (fixed; adjustable collar for depth) | 48″ | 60″ |
Voltage | 12V (45/55 lbs), 24V (70 lbs) | 12V | 24V |
Max Speed | Included (Advanced GPS) | ~3–4 mph (estimated) | ~4–5 mph (estimated) |
Battery Runtime | Up to 20+ hours (low settings), 2–4 hours (high thrust) | 4–6 hours (low settings) | 3–5 hours (high thrust) |
Control System | Foot pedal (non-GPS models) / Advanced GPS Micro Remote (GPS models) | Side-to-Side Electric Foot Pedal (18′ cord) | Advanced GPS Micro Remote (Spot-Lock, AutoPilot) |
GPS Features | Spot-Lock™, AutoPilot, Drift Mode, Follow Mode (GPS models) | Not included | Included (Advanced GPS) |
Propeller | Power Prop (MKP-37) or Weedless Wedge 2 (varies by model) | Power Prop (MKP-37) | Power Prop (MKP-37) |
Weight | 38–46 lbs (shaft length and thrust-dependent) | ~38–44 lbs | ~41–46 lbs |
Kayak Compatibility | Freshwater kayaks up to 18′ (55 lbs) or 22′ (70 lbs) | Small kayaks/kayaks (16–18′) | Larger kayaks (18–22′) |
Warranty | 2-year limited (3 years with registration) + Lifetime shaft guarantee | Applies | Applies |
Sonar Integration | Optional Dual Spectrum CHIRP (DSC) | Not included | Included (DSC models) |
Mounting | Bolt-on bow mount; compatible with MKA-21 quick-release bracket | Included | Included |
Key Technology | Digital Maximizer™ (5x runtime), Indestructible Composite Shaft | Yes | Yes |
Features of Minn Kota PowerDrive Freshwater Electric-Steer Bow-Mount
Engineered for reliable performance and versatility, the Minn Kota PowerDrive Freshwater adapts seamlessly to diverse freshwater angling needs and boat sizes. Here are its standout features in detail:
Electric-Steer Technology: Hands-Free Precision
The Minn Kota PowerDrive Freshwater’s electric-steer system allows anglers to adjust direction wirelessly with pinpoint accuracy. By eliminating manual cable steering, it frees hands for casting, reeling, or netting fish while maintaining full control over the motor’s movement.
GPS Spot-Lock (i-Pilot Models): Anchor Anywhere
Exclusive to i-Pilot models, GPS Spot-Lock uses satellite positioning to hold the kayak stationary over fishing hotspots, even in strong winds or currents. This feature ensures effortless vertical jigging or bait presentation without constant manual adjustments.
Weedless Wedge Propeller: Cut Through Vegetation
The flared-blade Weedless Wedge Propeller slices through thick weeds, lily pads, and submerged debris without snagging. This minimizes downtime for cleanup and maximizes time spent fishing in challenging environments.
Digital Maximizer Power Management: Extended Runtime
By optimizing energy use based on resistance (e.g., wind, waves), the Digital Maximizer extends battery life up to 5x longer than traditional motors. Anglers enjoy a silent, all-day operation on a single charge.
Bow-Mount Design: Balanced Stealth
Mounted at the bow, the motor improves kayak balance and control, enabling stealthy approaches to skittish fish. Its low-profile design reduces drag and enhances maneuverability in shallow water.
Deploy-Assist Lever: Effortless Setup
The Deploy-Assist Lever simplifies lowering and raising the motor with one hand, even in choppy conditions. A nitrogen-charged spring reduces physical strain during deployment.
Quiet Propulsion System: Silent Operation
Engineered with noise-dampening bearings and a brushless motor, the PowerDrive operates almost silently. This prevents spooking fish in clear-water scenarios where stealth is critical.
IP67 Water Resistance: Built for the Elements
With an IP67 rating, the motor withstands splashes, rain, and temporary submersion. Critical internal components stay protected, ensuring reliability in harsh weather or accidental dips.
Bluetooth Remote Compatibility: Wireless Control
Pair the motor with a Bluetooth remote to adjust speed, steering, or GPS modes from anywhere on the kayak. This eliminates the need to stay tethered to the foot pedal.
Universal Sonar 2 Compatibility: Integrated Fish Finding
Seamlessly connect Humminbird fish finders to the Universal Sonar 2 system for real-time updates on depth, structure, and fish location. This eliminates cluttered wiring and enhances on-water decision-making.
How Spot Lock Technology Works In Trolling Motors?
How does spot lock work? Spot lock technology in trolling motors is a game-changer for anglers. It uses GPS to maintain a boat’s position, allowing fishermen to focus on fishing rather than constantly adjusting their location.
The Role Of GPS In Spot Lock Trolling Motors
GPS is the backbone of spot lock functionality. The motor’s onboard GPS receiver continuously tracks the boat’s position. When the spot lock is engaged, the system sets this position as an anchor point. As the boat drifts due to wind or current, the GPS detects these small movements and signals the motor to make automatic adjustments, keeping the boat in place.
Benefits Of Spot Lock For Precise Fishing
Spot lock offers several advantages:
- Allows anglers to maintain position over productive fishing spots
- Frees up hands for fishing instead of boat control
- Reduces fatigue from constant manual adjustments
- Enables precise fishing in windy conditions or strong currents
- Useful for vertical fishing techniques
Factors To Consider When Choosing A Trolling Motor With Spot Lock
Thrust Power And Boat Size Compatibility
Matching the motor’s thrust to your boat’s size is crucial. Larger, heavier boats require more thrust to maintain position effectively. As a rule of thumb, you need about 2 pounds of thrust for every 100 pounds of fully loaded boat weight. For good fishing kayaks, this calculation is especially important due to their smaller size and weight.
Battery Life And Power Efficiency
Spot lock can drain batteries quickly, especially in challenging conditions. Consider:
- Battery capacity
- Motor efficiency
- Typical fishing duration
- Availability of onboard charging
Some newer models offer variable power settings to balance performance and battery life.
Shaft Length And Mounting Options
Proper shaft length ensures the propeller remains submerged without hitting the bottom or being too close to the surface. Consider your boat’s design and typical fishing conditions when choosing shaft length. For kayaks, you might want to look into specialized mounting options designed for smaller watercraft.
Additional GPS Features And Connectivity
Many spot lock motors offer extra GPS-based features like:
- Route recording and playback
- Waypoint navigation
- Integration with fish finders
- Smartphone app control
Consider which features align with your fishing needs and existing electronics setup.
While spot lock is useful, it’s just one factor to consider. The best trolling motor for you balances spot lock performance with other features that match your specific fishing requirements and boat setup.
